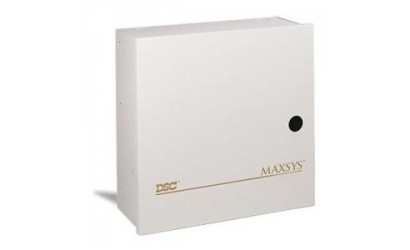

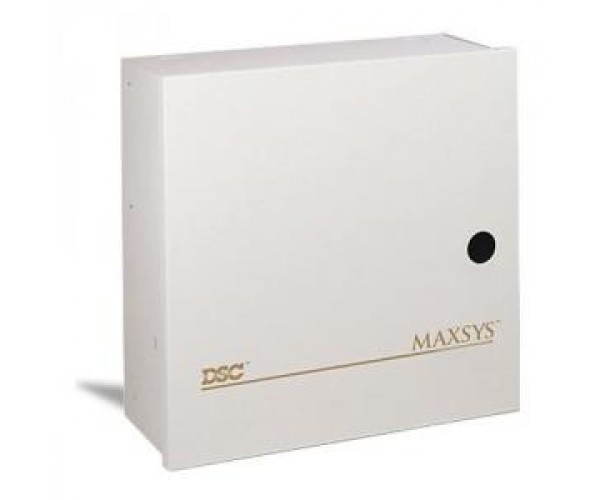

The MAXSYS PC4010 is a highly flexible and versatile controller which will enable the installer to meet the most demanding security requirements. The heart of the system is the main control panel, designated the PC4010, which is connected to other system elements using common 4 conductor unshielded station wire. The main panel processes signal information and communicating with the monitoring station. The main panel is capable of supervising 8 zones, any of which may be defined for fire or burglary applications and also manages up to 4 separate and fully independent partitions, assigning zones and their controlling keypads in accordance with installer programming.

PC4010A contains 1 unit PC4010 controller, 1 unit metal case (without camlock) & installation manual.

Features:

• 8 on-board zones
• Expandable to 64 hardwired zones
• Expandable to 64 wireless zones
• 1 PGM outputs on-board
• Connect up to 8 supervised keypads
• 4 partitions
• 600-event buffer
• 128 user codes
